3000 Series Specs

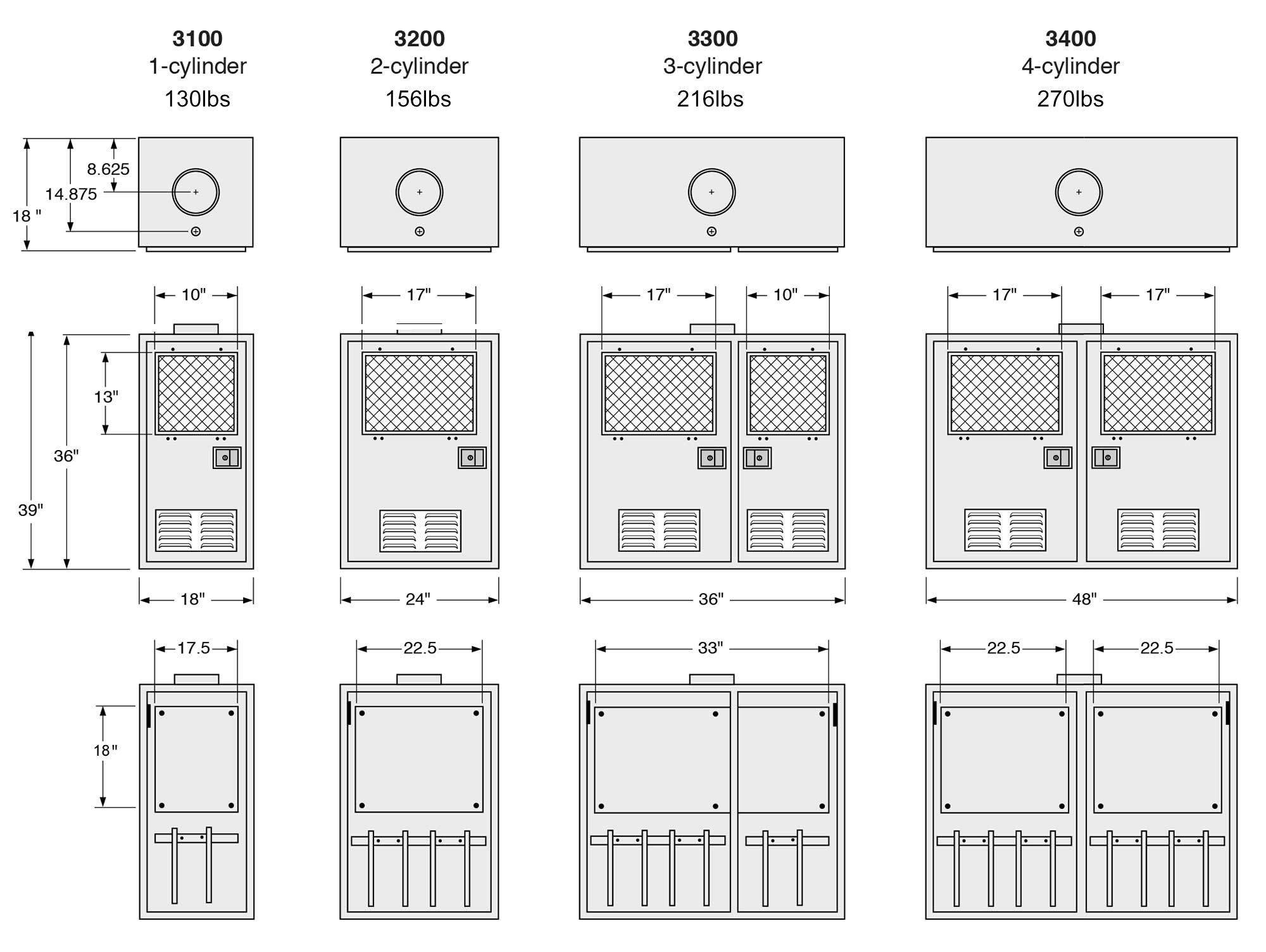

Gas Cabinet Models
(all dimensions in inches)

3000 Series Gas Cabinets


  • All welded construction using 12-gauge steel, epoxy painted.
  • Texture finish on outside, smooth finish on inside of cabinet.
  • Exhaust vent located on top of cabinet is 6” diameter x 3” high.
  • 165°F sprinkler head on top of cabinet is coated with bees wax.
  • Removable white back panel mounts to inside rear cabinet.
  • Cylinder brackets or lecture bottle brackets are adjustable for precise pig-tail alignment.
  • Door and window will close and latch automatically.
  • Window is 1/4” thick clear wire glass.
  • Louvers at bottom of door.
  • Flush mounted stainless steel paddle latch.
  • All stainless steel fasteners.


  • Dome roof configurations
  • Keyed door latch
  • Air intake filter
  • Custom colors
  • Wall mounting brackets
  • Full-length back panel
